Technical Specification
FRAME MEASUREMENTS 45cm / M 50cm / L 55cm
WHEEL SIZE26″ / 700c / 700c
A – SEAT TUBE450 / 500 / 550
B – SEAT TUBE ANGLE73 / 73 / 73
C – HEAD TUBE LENGTH160 / 170 / 180
D – HEAD TUBE ANGLE69 / 69 / 69
E – EFFECTIVE TOP TUBE575 / 590 / 605
F – BOTTOM BRACKET DROP55 / 55 / 55
G – CHAINSTAY LENGTH450 / 450 / 450
H – FORK OFFSET45 / 45 / 45
I – WHEELBASE1094 / 1110 / 1126
J – REACH394 / 406 / 418
K – STACK592 / 601 / 611
Drive
Chainwheel
Prowheel 42T
Cassette
Shimano 7 Speed
Rear Derailleur
Shimano Altus 7 Speed
Shift Levers
Shimano Rapid Fire 7 Speed
Rim Front
700c Alloy 36H
Rim Rear
700c Alloy 36H 700c Alloy 36H
Tyre Front
Continental Contact 42mm
Tyre Rear
Continental Contact 42mm
Disc Rotors
Clarks 160mm
Chainwheel
Prowheel 42T
Cassette
Shimano 7 Speed

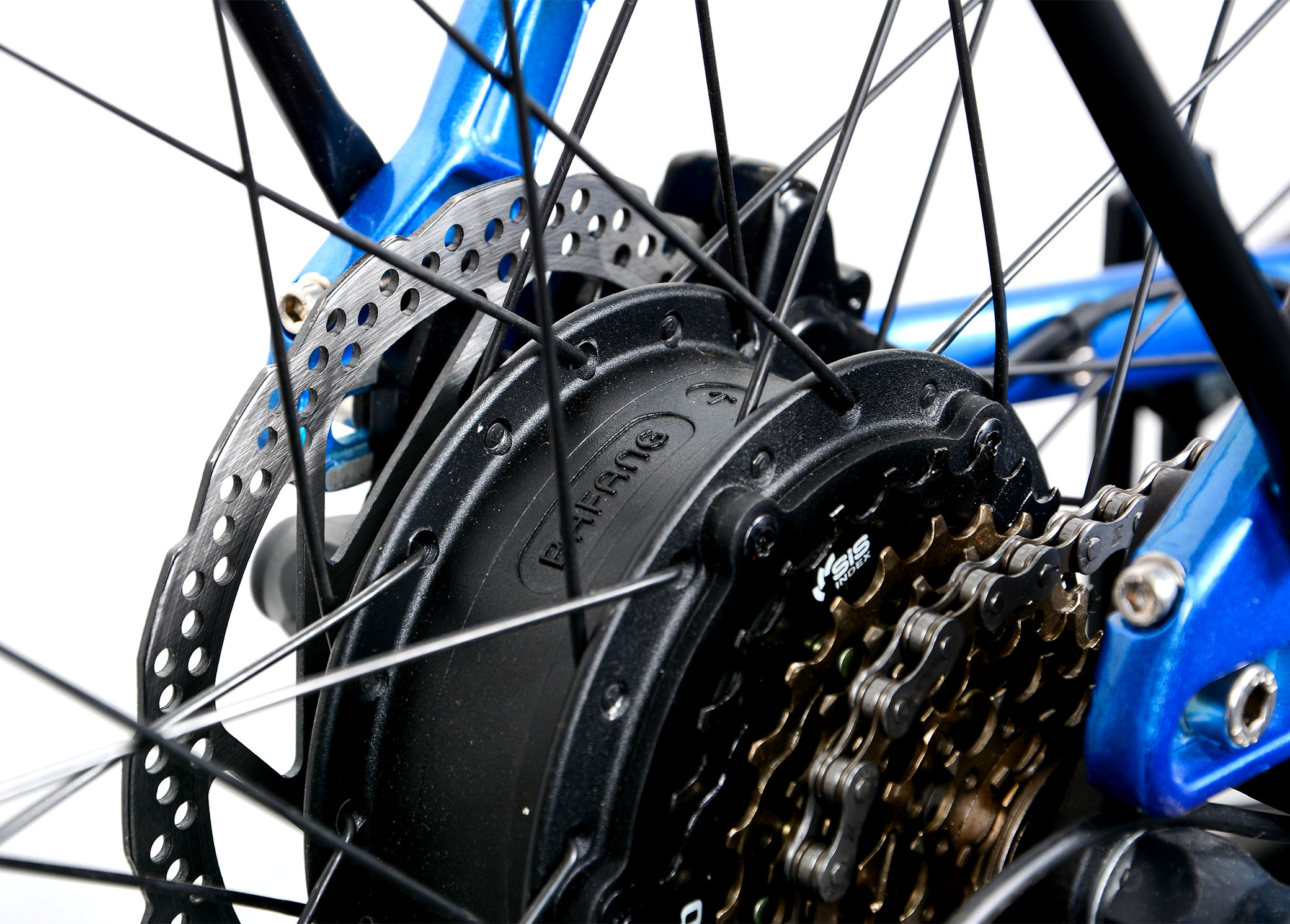

Motor
Bafang H300 Rear Hub Motor

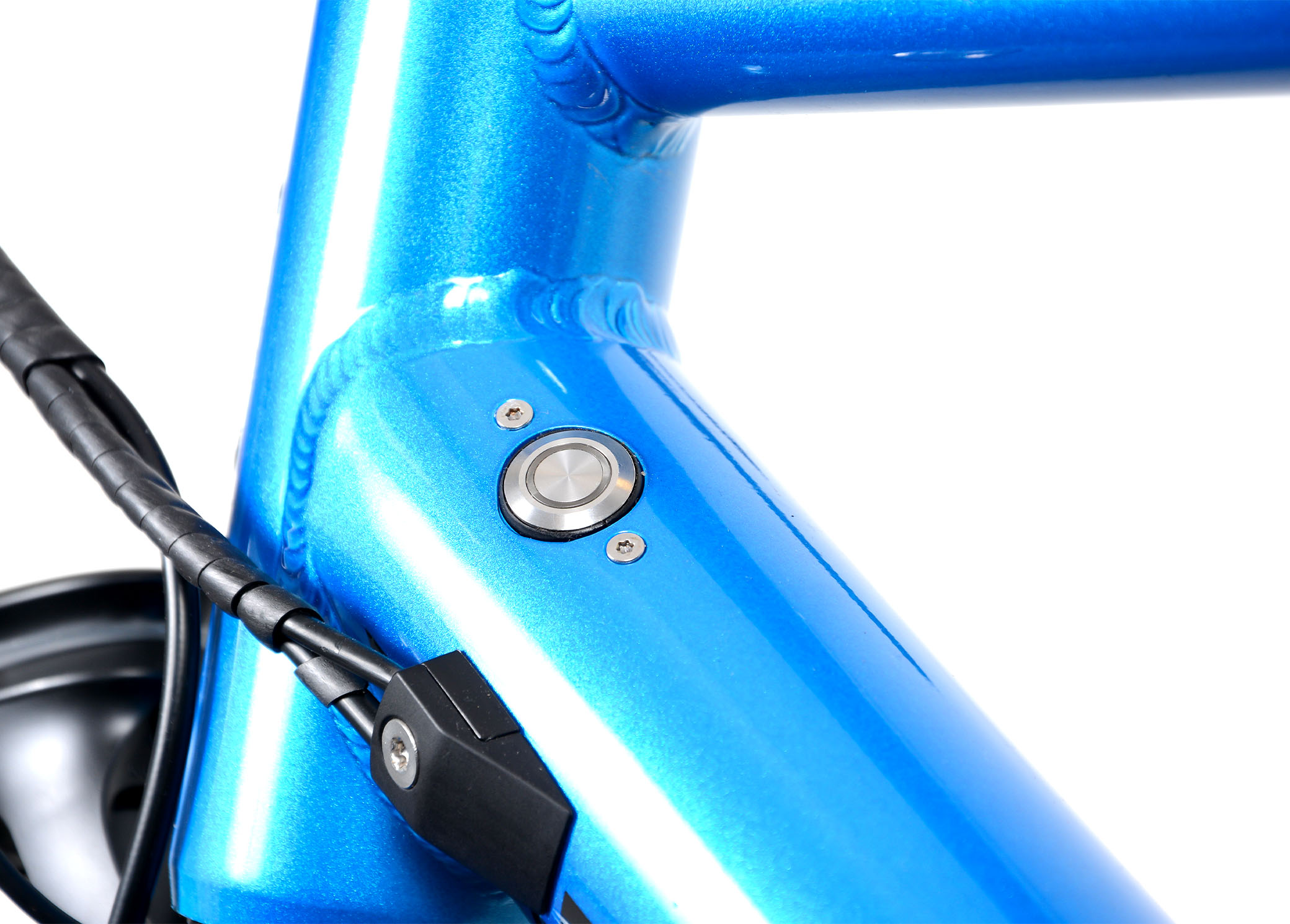

Battery
Intube 360WH LG Cell Battery

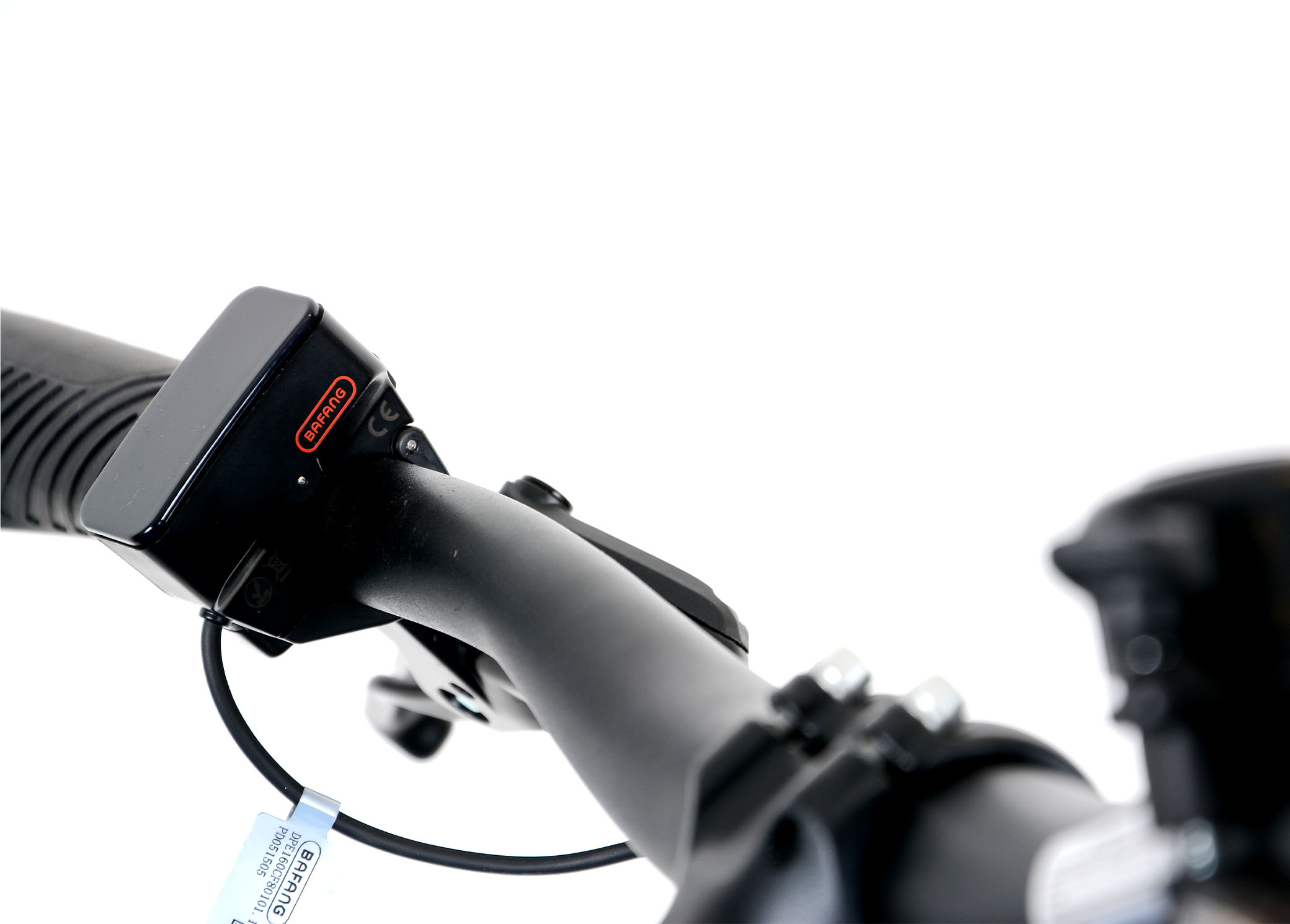

Display
Bafang EN161
Components
Frame
6061 Alloy Trapeze
Fork
Alloy Rigid

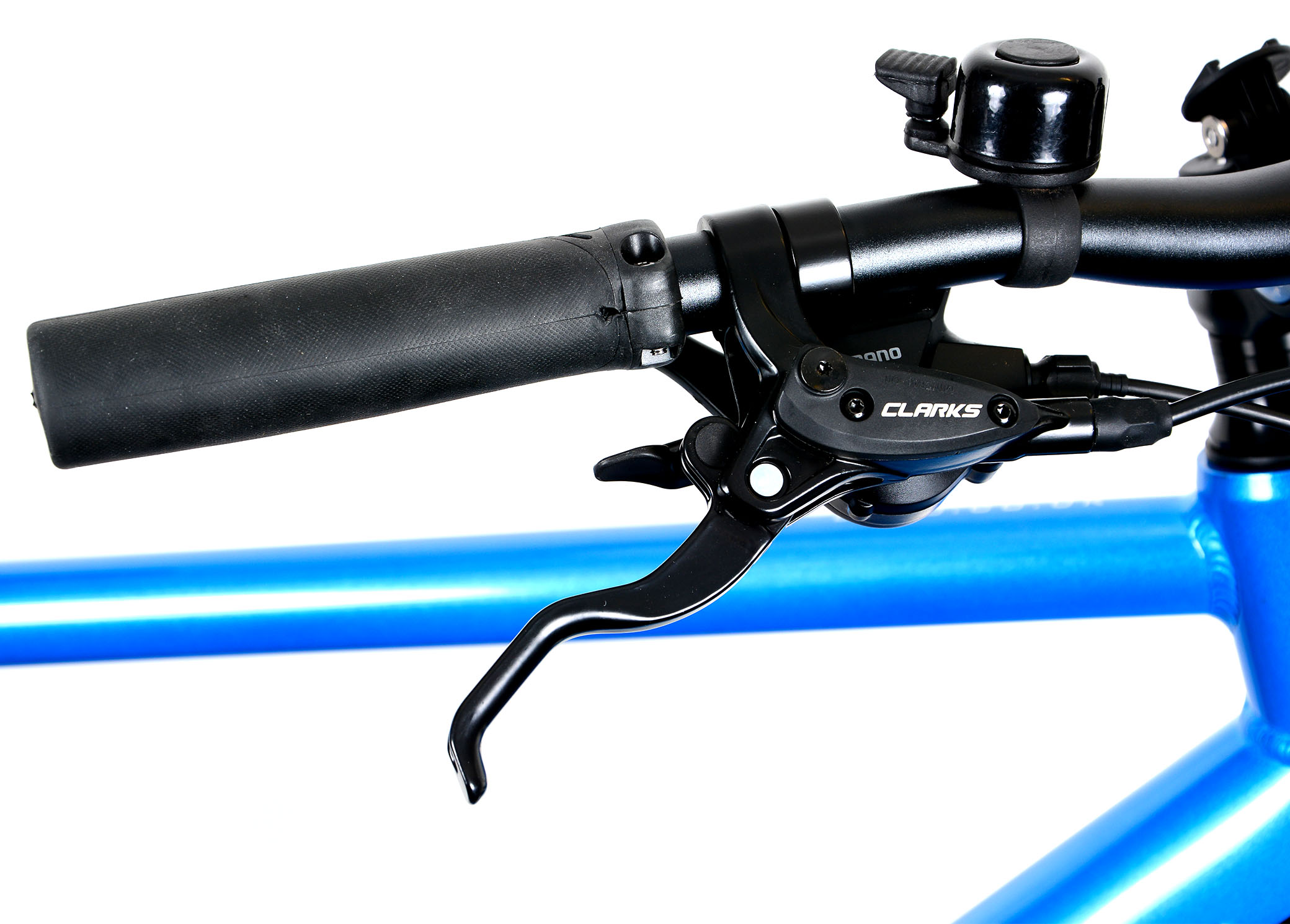

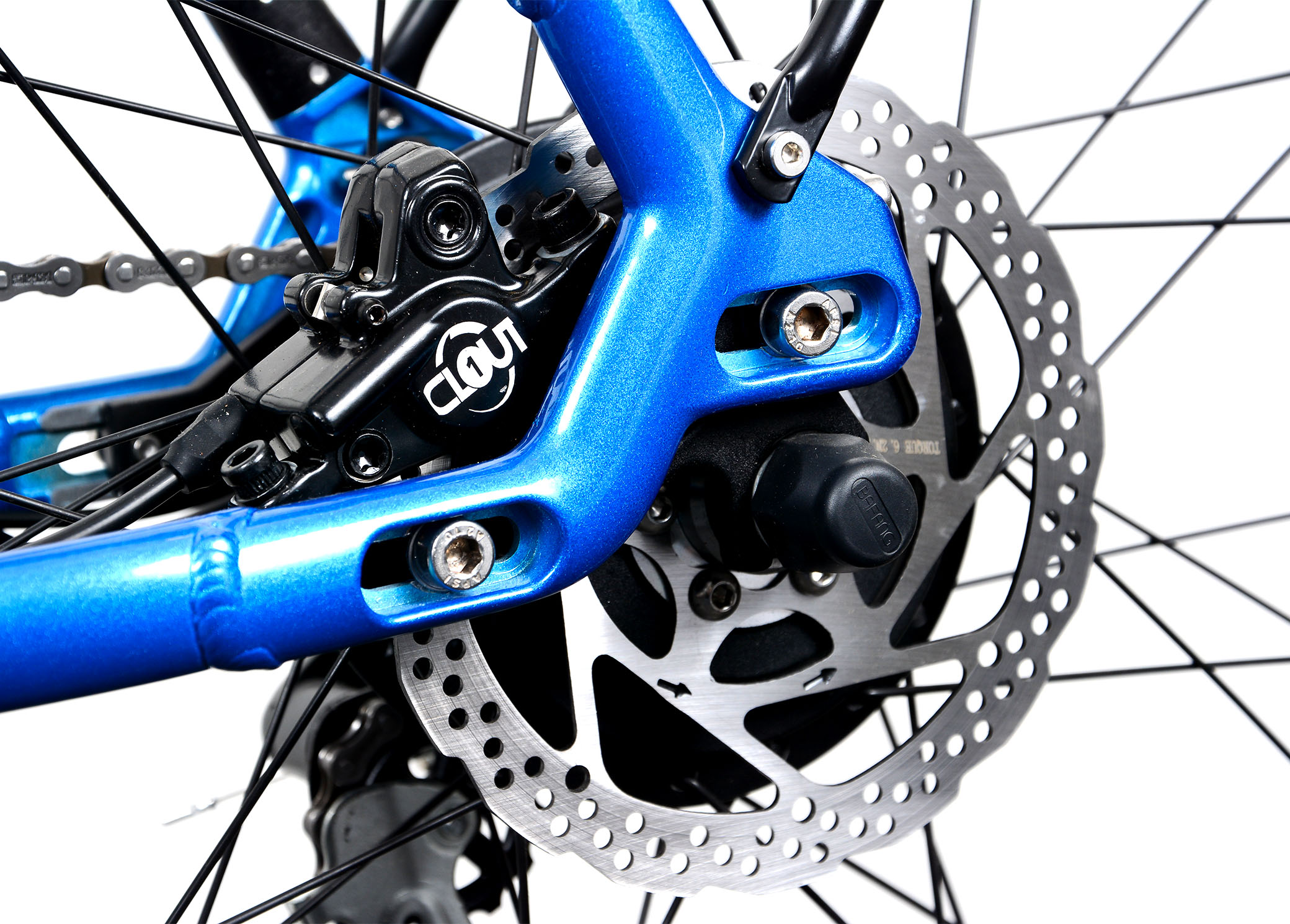

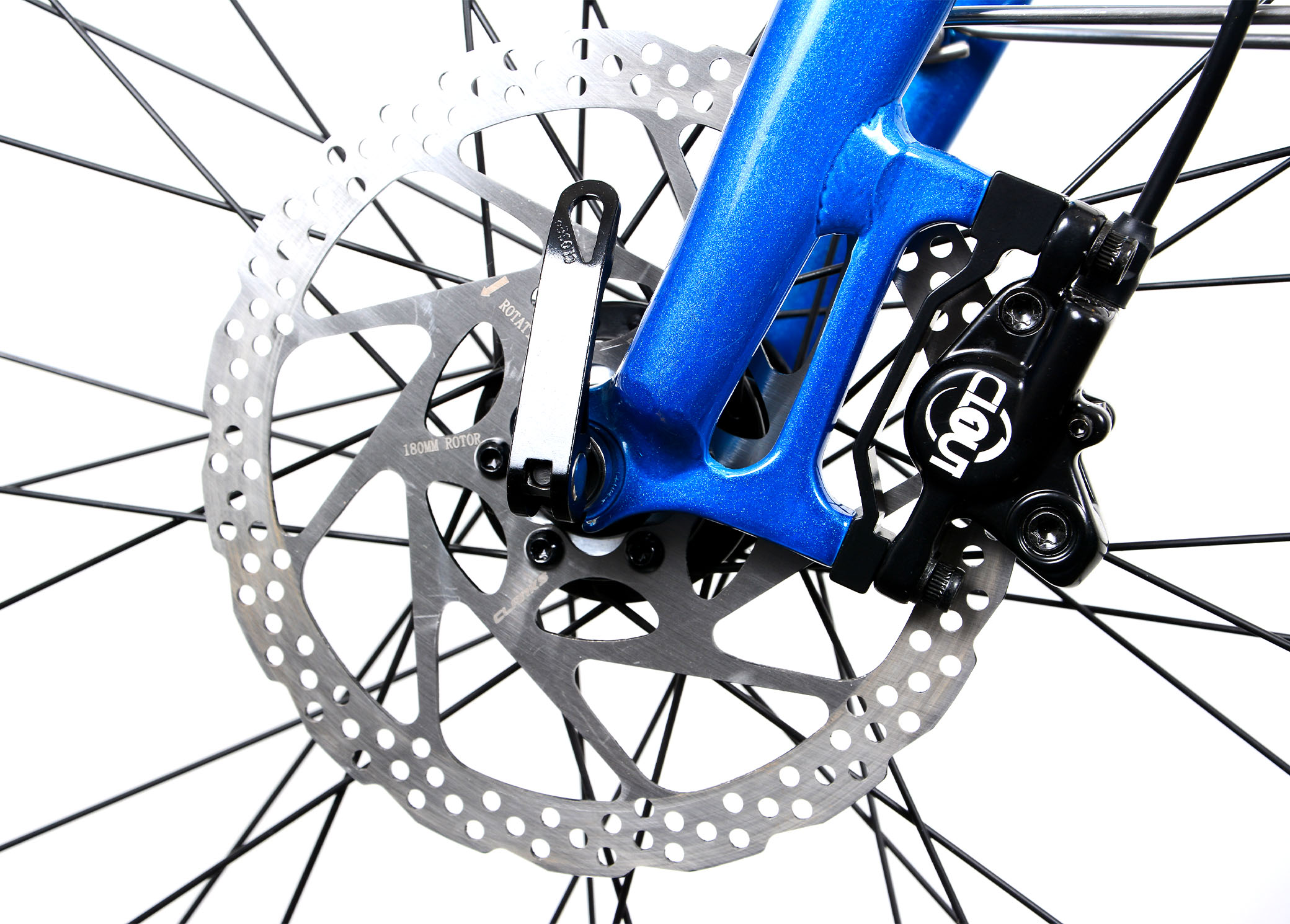

Brakes
Clarks Clout Hydraulic
Stem
SP Connect Phone Mount Alloy 35m
Handle Bar

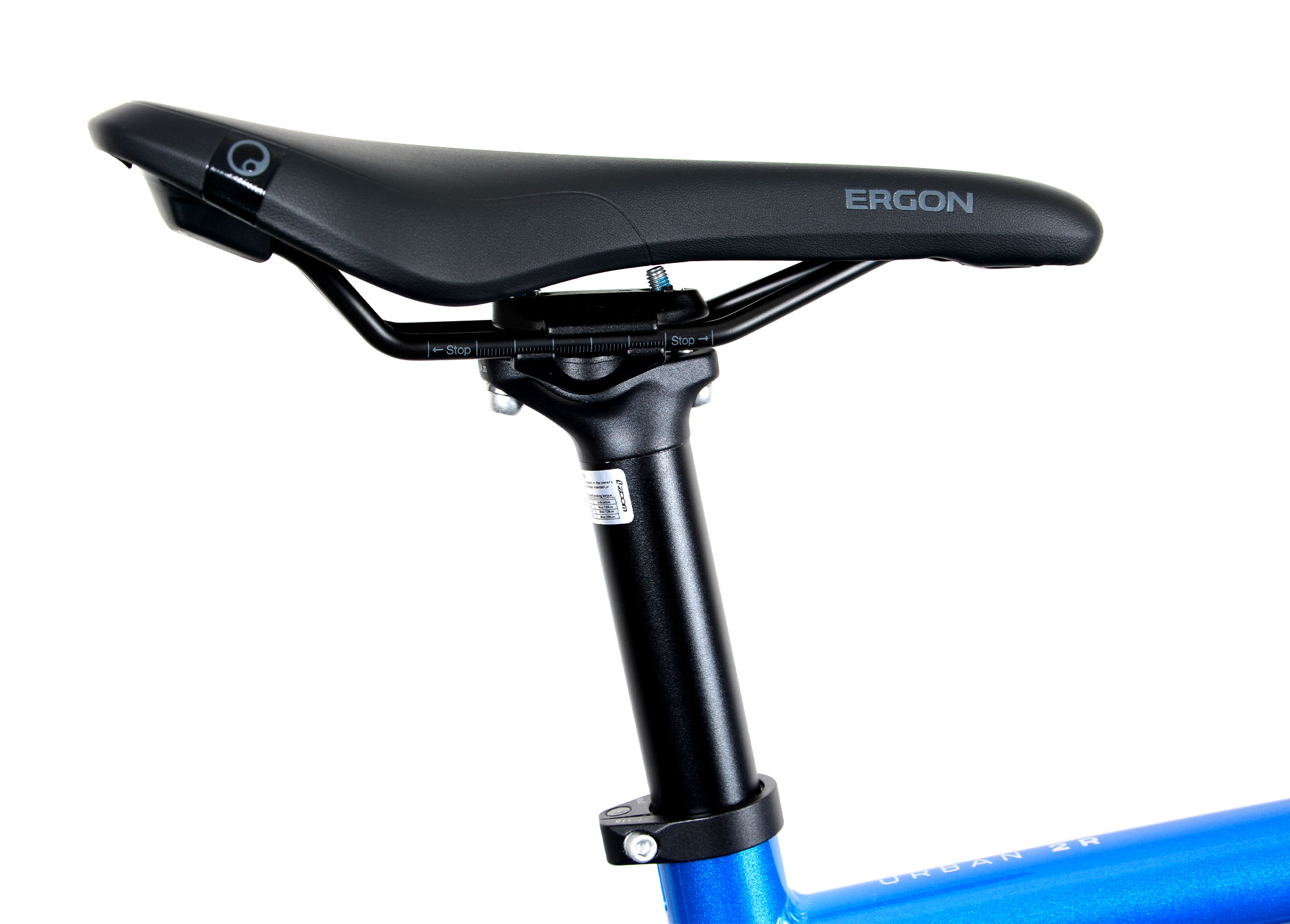

Saddle
Ergon Comfort Saddle
Seat Post
Alloy 30.9 x 400mm
Accessories

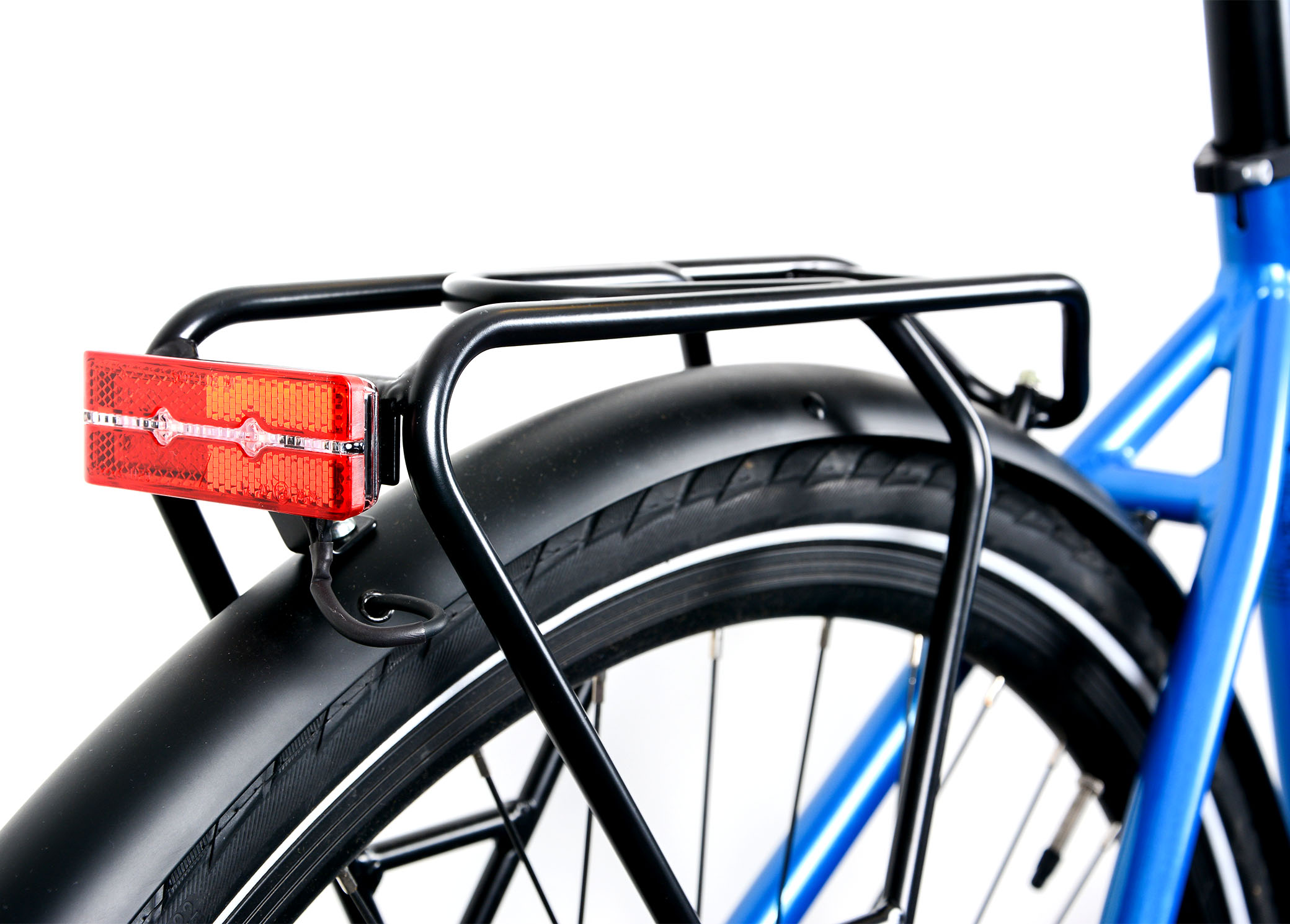

Rear Carrier.

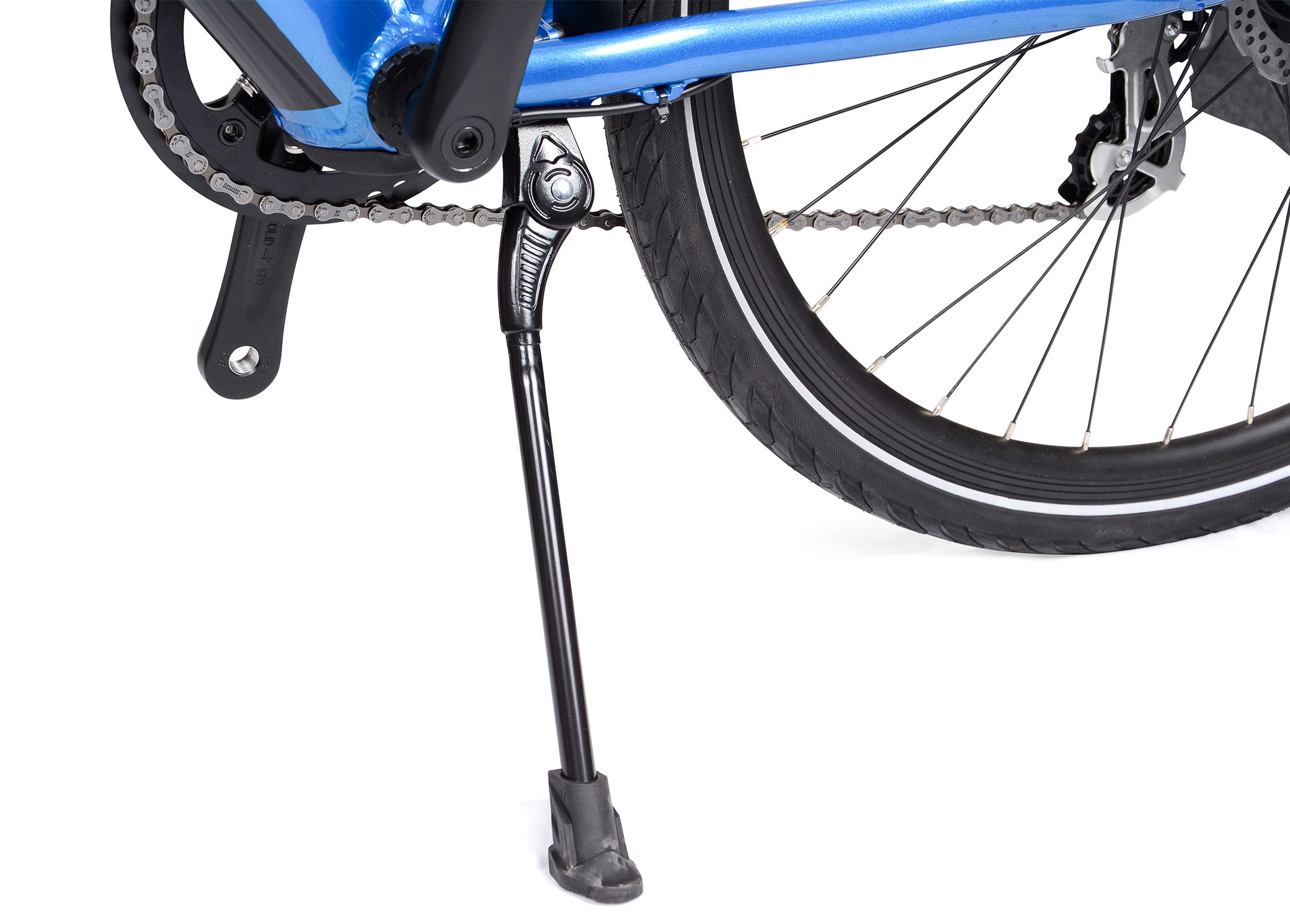

Side Kickstand.
Front and Rear Light System.
Frame Mounted mudguards.
