HomeTop Tube Haibike Trekking 6 Crossbar 500Wh Battery
Previous product
Haibike Trekking 6 Low Step 500Wh Battery Smile Price: £2,600.00
Back to products
Next product
Haibike Trekking 4 Crossbar Smile Price: £2,450.00

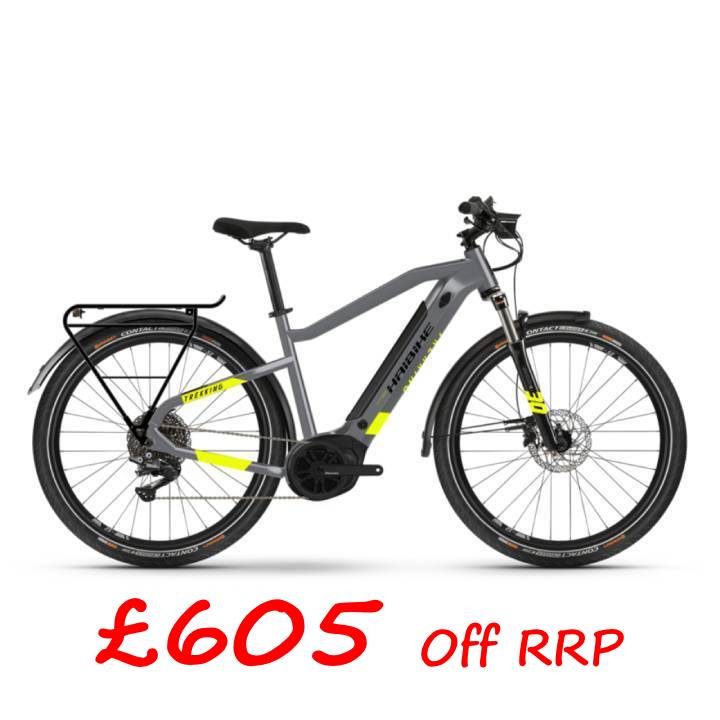

Haibike Trekking 6 Crossbar 500Wh Battery

Smile Price: £2,600.00

In stock now! Small, Medium, Large & XL. Available to demo.

Do you love adventures on two wheels? With the Trekking 6 you have a reliable partner at your side! The powerful Yamaha PW-SE motor supports you even on long rides with extra weight. Your equipment fits on the standard carrier and the powerful lights show you the way when the day’s stage gets a little longer than anticipated. The perfect eTrekking bike to explore new territory!

5% Caravan and Motorhome Club discount available on this bike

Grey
LMS
Clear
SKU: 7501-1 Categories: Haibike, Homepage feature, Top Tube
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Book An Appointment
Description

Technical Specification

MOTOR

Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h

FRAME FAMILY

Haibike, Trekking Yamaha i500/i400, Aluminium 6061

BRAKE (FRONT)

Tektro, T275, 180 mm, 2-piston disc brake

RIM

Schürmann, Yak25, with eyelets, hollow rim, Aluminium

SHIFT LEVER

Shimano, Deore M4100, Trigger switch, 10 Speed

CHAIN

KMC, e10S

BRAKE DISC (FRONT)

Tektro, TR180

FRONT WHEEL HUB

Haibike Components, TheHub ++, 6-bolt standard

HANDLEBAR

XLC, Topflat, 720 mm

HEADSET

Cane Creek, Viscoset, Aluminium

PEDALS

VP, E461, Aluminium, with Reflector

DYNAMO

Via system battery

STAND

Ursus, Mooi , Rear stand

INCLUDES eCONNECT

No

.

DISPLAY

Yamaha, Multi Switch, 2.8″ TFT, 16 functions

FORK

SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8″ – 1 1/2″ tapered, Quick release 100mm

BRAKE (REAR)

Tektro, T275, 160 mm, 2-piston disc brake

CLAMPING RING

Quick release, 34.9 mm

BOTTOM BRACKET

Integrated in the motor

CHAINRING

Steel, 38 teeth

BRAKE DISC (REAR)

Tektro, TR160

REAR WHEEL HUB

Haibike, TheHub ++, 6-bolt standard

GRIPS

XLC, Comfort bo3

SADDLE

XLC, Trekking

HEADLIGHT

Haibike, Skybeamer 150, 50 lm

CARRIER

Massload, system carrier

PERMITTED TOTAL WEIGHT

130.0 kg

.

BATTERY

Yamaha, InTube, 500 Wh

CRANK ARM

Haibike, forged, Aluminium

TUBE

Presta valve

REAR DERAILLEUR

Shimano, Deore M5120

SPROCKET

Shimano, M4100, 11 – 46 teeth

BRAKE LEVER

Tektro, T275, Aluminium

TYRE

Continental, Contact Cruiser, 62-584, 27.5″ x 2.4″

SPOKES

Sapim, Leader, Black

STEM

XLC, Alu, A-head

SEAT POST

XLC, Aluminium, Patent, 31.6 mm

REAR LIGHT

AXA, Blueline

FENDERS

SKS, Chromoplastics

Additional information
Colours

Grey

Brand

Haibike

Frame Size

S, M, L
