HomeTop Tube Haibike Trekking 4 Crossbar
Previous product
Haibike Trekking 6 Crossbar 500Wh Battery Smile Price: £2,600.00
Back to products
Next product
Raleigh Stride 2 Cargo Ebike 2022 Smile Price: £4,400.00

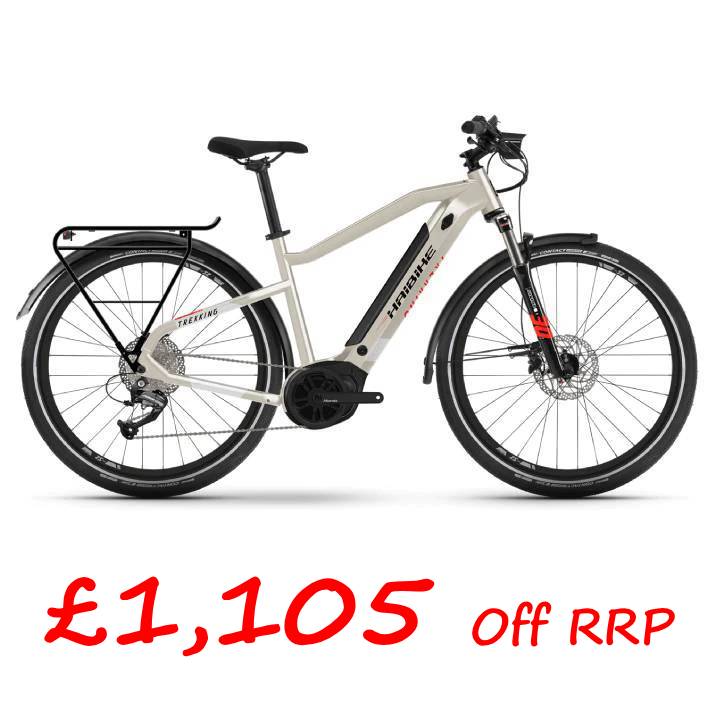

Haibike Trekking 4 Crossbar

Smile Price: £2,450.00

Large In stock (Desert White) Medium In stock (Blue)

Other sizes arriving mid June

The new Trekking 4 has everything you need for cruising in the city, or for extended rides in the countryside. The Yamaha PW-TE motor allows you to accelerate smoothly and with power, the integrated 500Wh battery providing ample reserves. Equipped with a luggage rack, lights, mudguards and a kickstand, this eBike is truly ready for everyday use. Your entry into the eTrekking bike world!

5% Caravan and Motorhome Club discount available on this bike

Desert White
LMS
Clear
SKU: 7500-1-1 Categories: Haibike, Top Tube
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Book An Appointment
Description

Technical Specification

MOTOR

Yamaha, PW-TE System, 250W, 60 Nm, 25 km/h

FRAME FAMILY

Haibike, Trekking Yamaha i500/i400, Aluminium 6061

BRAKE (FRONT)

Tektro, T275, 180 mm, 2-piston disc brake

RIM

Schürmann, Yak25, with eyelets, hollow rim, Aluminium

SHIFT LEVER

Shimano, Alivio M3100, Trigger switch, 9 Speed

CHAIN

KMC, e9S

BRAKE DISC (FRONT)

Tektro, TR180

FRONT WHEEL HUB

Haibike, TheHub ++, 6-bolt standard

HANDLEBAR

XLC, Topflat, 720 mm

HEADSET

Cane Creek, Viscoset, Aluminium

PEDALS

VP, E461, Aluminium, with Reflector

DYNAMO

Via system battery

STAND

Ursus, Mooi , Rear stand

INCLUDES eCONNECT

No

DISPLAY

Yamaha, Side Switch, 1.7″ LCD, 7 functions

FORK

SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8″ – 1 1/2″ tapered, Quick release 100mm

BRAKE (REAR)

Tektro, T275, 160 mm, 2-piston disc brake

CLAMPING RING

Quick release, 34.9 mm

BOTTOM BRACKET

Integrated in the motor

CHAINRING

Steel, 38 teeth

BRAKE DISC (REAR)

Tektro, TR160

REAR WHEEL HUB

Haibike, TheHub ++, 6-bolt standard

GRIPS

XLC, Comfort bo3

SADDLE

Selle Royal, Wave

HEADLIGHT

Trelock, Bike – i Veo LS230, 20 lm

CARRIER

Massload, system carrier

PERMITTED TOTAL WEIGHT

130.0 kg

.

BATTERY

Yamaha, InTube, 500 Wh

CRANK ARM

Haibike, forged, Aluminium

TUBE

Presta valve

REAR DERAILLEUR

Shimano, Altus M2000

SPROCKET

Shimano, HG200, 11 – 36 teeth

BRAKE LEVER

Tektro, T275, Aluminium

TYRE

Continental, Contact Urban, 55-584, 27.5″ x 2.2″

SPOKES

Sapim, Leader, Black

STEM

XLC, Alu, A-head

SEAT POST

XLC, Aluminium, Patent, 31.6 mm

REAR LIGHT

AXA, Blueline

FENDERS

SKS, Chromoplastics

Additional information
Colours

Desert White

Brand

Haibike

Frame Size

S, M, L

Book An Appointment

Ebike viewing and demo ride

The Personalised Ebike experience at Smilebikes! Come and have a chat with us about your requirements and try out our confidence inspiring Ebikes.
