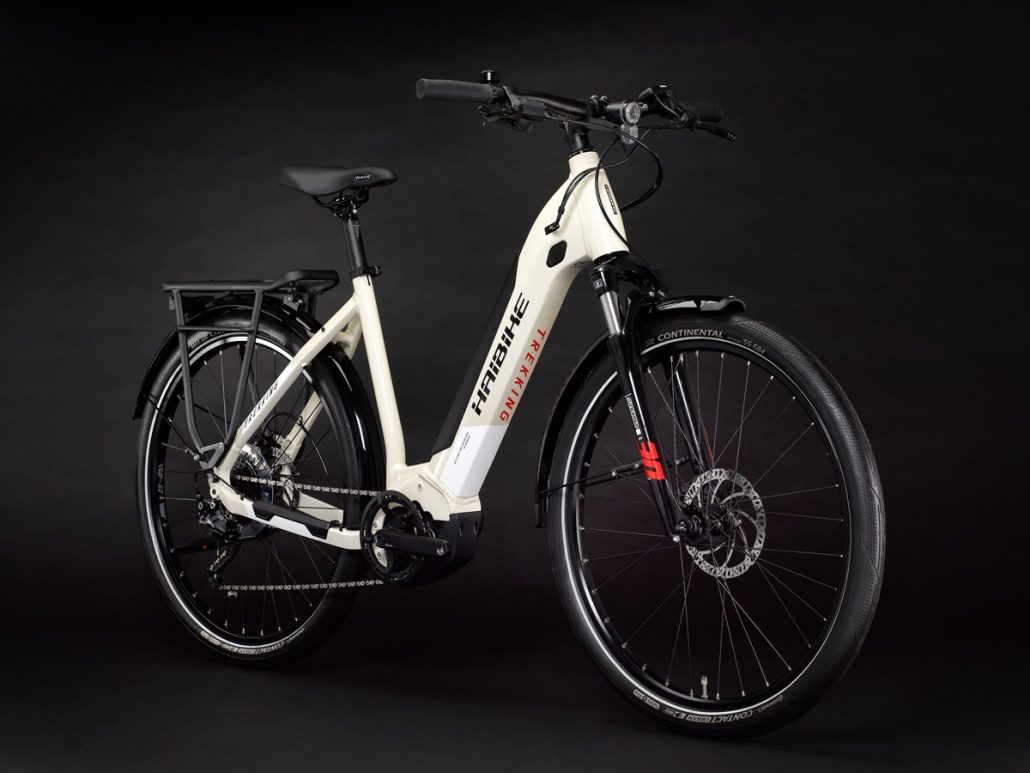

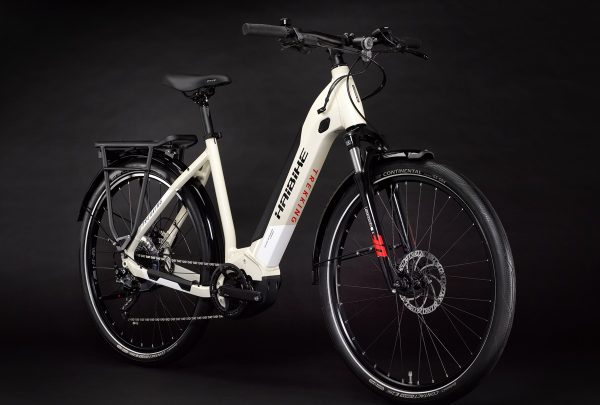

Haibike Trekking 4 Lowstep

In stock for demos now

ABOUT THE BIKE

Your perfect entry into the world of eTrekking bikes is easy and comfortable thanks to the especially low step through: with the new Trekking 4 Lowstep, getting on and off the bike is as easy as child’s play. In combination with the particularly comfortable and upright seating position, this eBike with its powerful Yamaha PW-TE motor is your ideal companion for many miles – whether you are going shopping in the city or on a longer trip with your luggage.

KEY FEATURES

£2,450

Available only in Desert White

Frame sizes: S, M, L

with 27.5 wheels

SPECIFICATIONS

MOTOR

Yamaha, PW-TE System, 250W, 60 Nm, 25 km/h

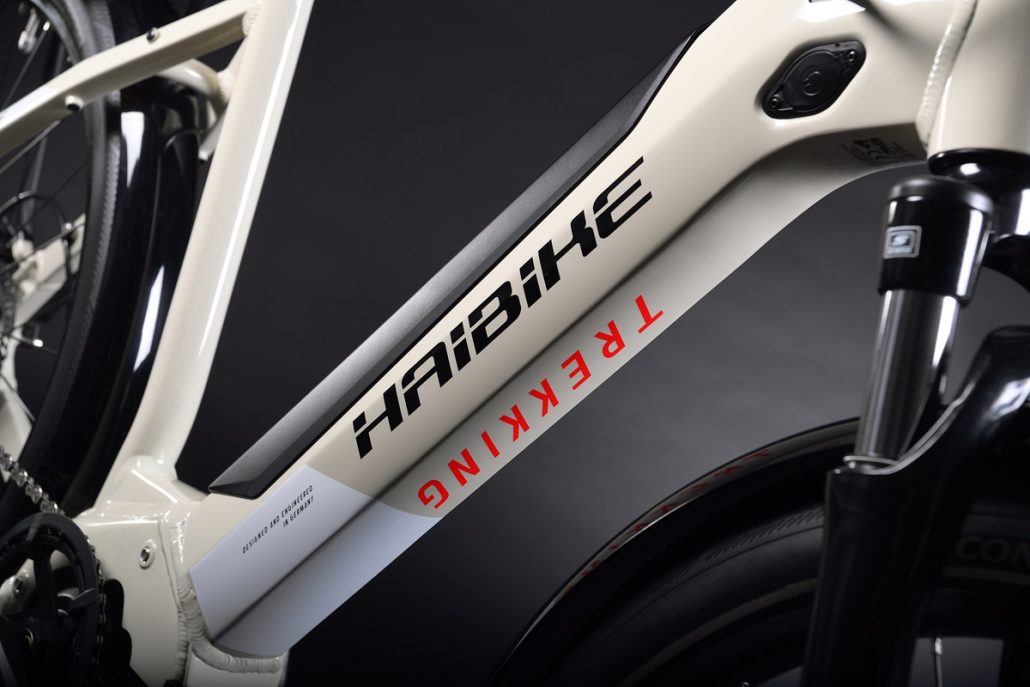

FRAME FAMILY

Haibike, Trekking Yamaha i500/i400, Aluminium 6061

BRAKE (FRONT)

Tektro, T275, 180 mm, 2-piston disc brake

RIM

Schürmann, Yak25, with eyelets, hollow rim, Aluminium

SHIFT LEVER

Shimano, Alivio M3100, Trigger switch, 9 Speed

CHAIN

KMC, e9S

BRAKE DISC (FRONT)

Tektro, TR180

FRONT WHEEL HUB

Haibike, TheHub ++, 6-bolt standard

HANDLEBAR

XLC, Topflat, 720 mm

HEADSET

Cane Creek, Viscoset, Aluminium

PEDALS

VP, E461, Aluminium, with Reflector

DYNAMO

Via system battery

STAND

Ursus, Mooi , Rear stand

INCLUDES eCONNECT

No

.

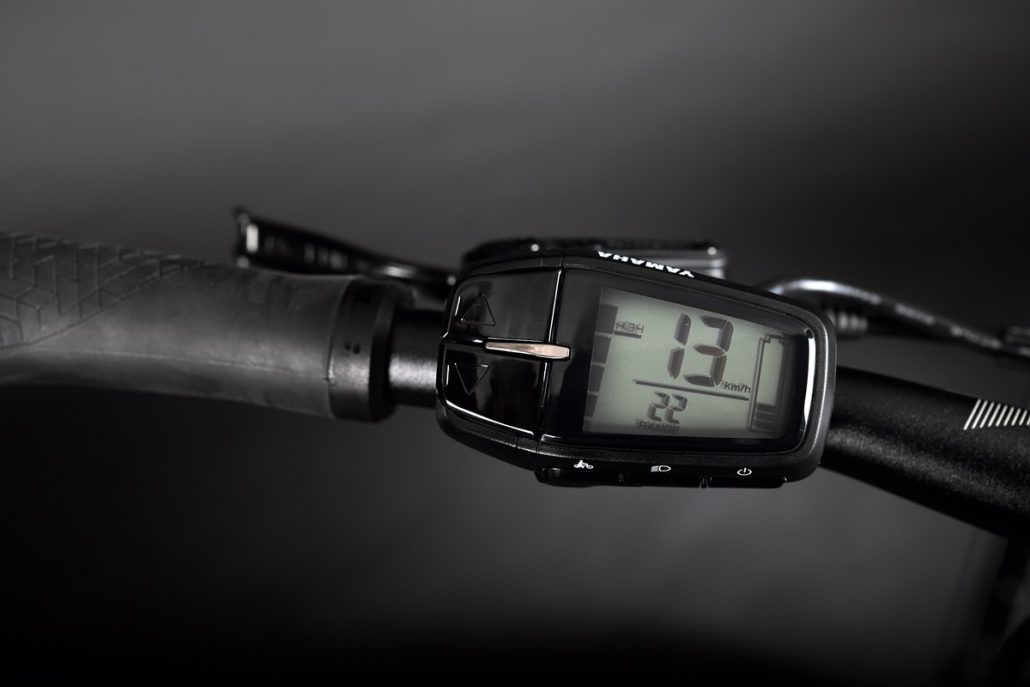

DISPLAY

Yamaha, Side Switch, 1.7″ LCD, 7 functions

FORK

SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8″ – 1 1/2″ tapered, Quick release 100mm

BRAKE (REAR)

Tektro, T275, 160 mm, 2-piston disc brake

CLAMPING RING

Quick release, 34.9 mm

BOTTOM BRACKET

Integrated in the motor

CHAINRING

Steel, 38 teeth

BRAKE DISC (REAR)

Tektro, TR160

REAR WHEEL HUB

Haibike, TheHub ++, 6-bolt standard

GRIPS

XLC, Comfort bo3

SADDLE

Selle Royal, Wave

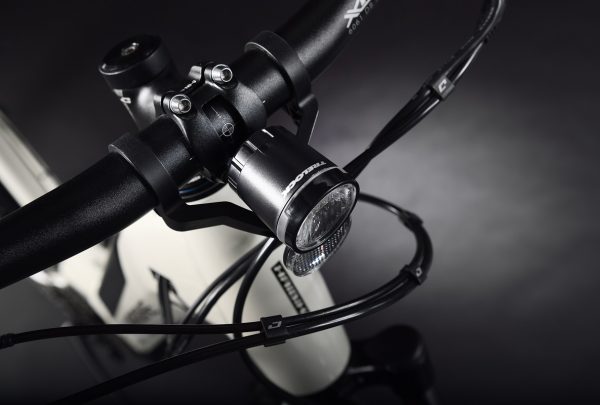

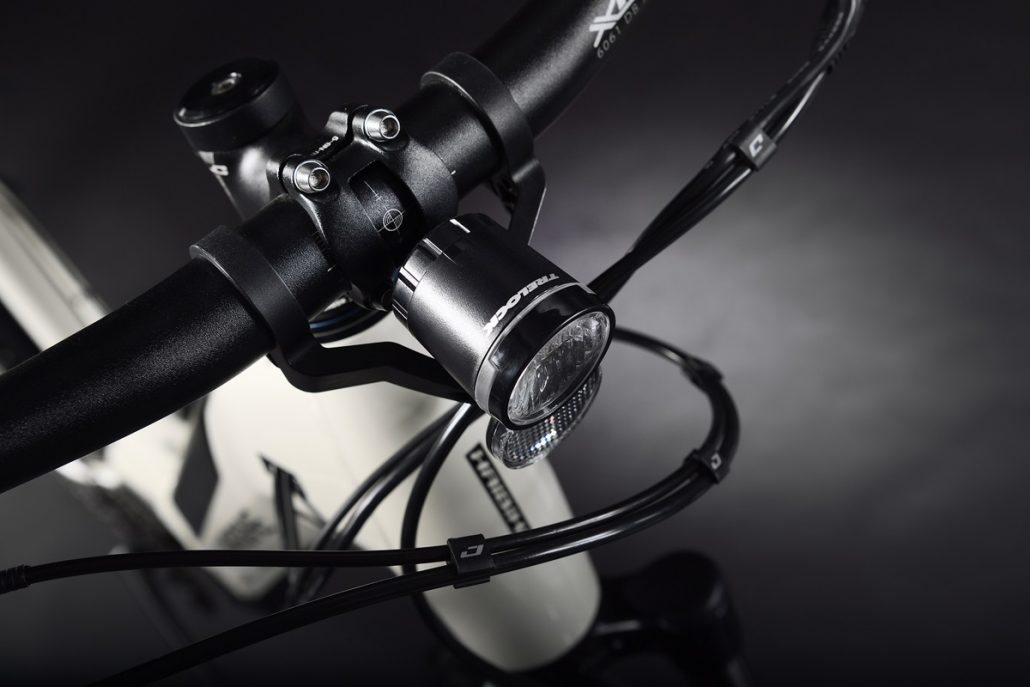

HEADLIGHT

Trelock, Bike – i Veo LS230, 20 lm

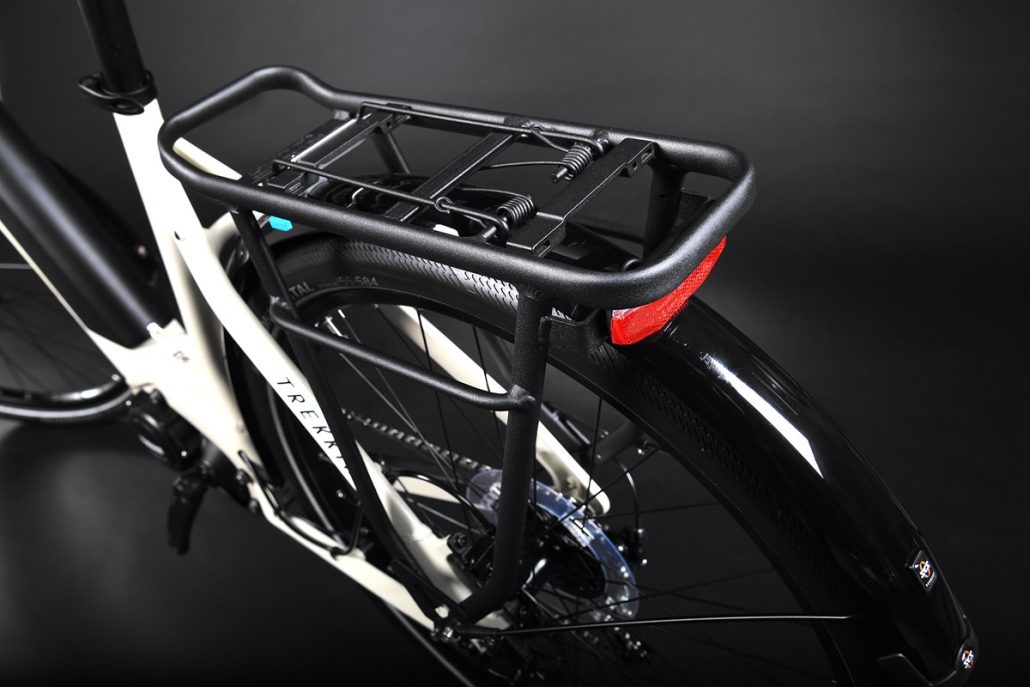

CARRIER

Massload, system carrier

PERMITTED TOTAL WEIGHT

130.0 kg

.

BATTERY

Yamaha, InTube, 500 Wh

CRANK ARM

Haibike, forged, Aluminium

TUBE

Presta valve

REAR DERAILLEUR

Shimano, Altus M2000

SPROCKET

Shimano, HG200, 11 – 36 teeth

BRAKE LEVER

Tektro, T275, Aluminium

TYRE

Continental, Contact Urban, 55-584, 27.5″ x 2.2″

SPOKES

Sapim, Leader, Black

STEM

XLC, Alu, A-head

SEAT POST

XLC, Aluminium, Patent, 31.6 mm

REAR LIGHT

AXA, Blueline

FENDERS

SKS, Chromoplastics
